Copper Wire Braided Flexibles

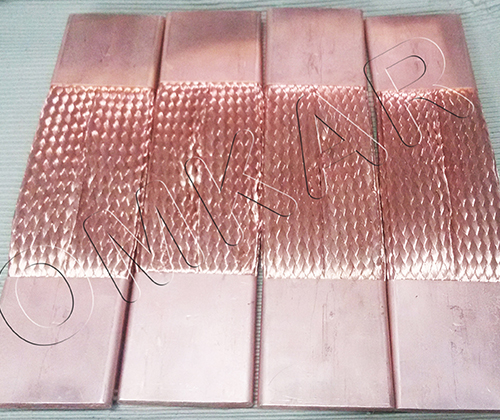

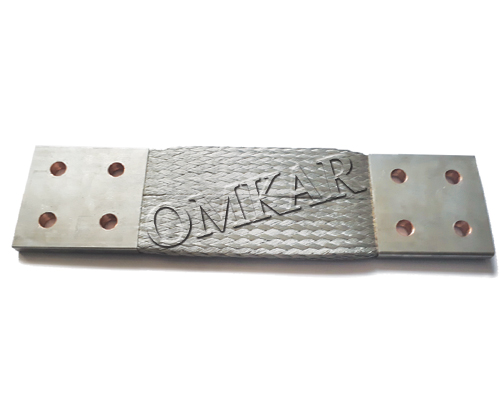

Copper Wire Flat Braids are fitted into copper tube terminals and then flattened using high-capacity presses to achieve the desired dimensions. These braided strips are available in Bare Copper, Tinned Copper, and Silver-Plated Copper. Similarly, copper tube terminals are offered in Bare Copper, Tinned Copper, and Silver-Plated Copper, with Tin-Plated Copper Ferrules and Tinned Copper Braids being the most commonly used in the industry.

Copper Flexible Connectors Standard Sizes

Cross Section	Palm Size	Length	Stud Hole	Current	Item Code
Area	Width X Length	Hole Center	Size	Rating	Sr.
sq. mm	mm	mm	mm	Amps*	No.
6	10 X 10	100	4,6	55	OPC-0610
6	10 X 10	150	4,6	55	OPC-0615
10	14X14	150	6,8	85	OPC-1015
10	14X14	200	6,8	85	OPC-1020
12	14X14	150	6,8	97	OPC-1215
12	14X14	200	6,8	97	OPC-1220
16	16X16	200	6,8	120	OPC-1620
16	16X16	250	6,8	120	OPC-1625
20	20X20	200	8,10	135	OPC-2020
20	20X20	250	8,10	135	OPC-2050
25	20X20 / 25X25	200	8,10	150	OPC-2520
25	20X20 / 25X25	300	10,12	150	OPC-2530
35	25X25	200	10,12	195	OPC-3520
35	25X25	300	10,12	195	OPC-3530
50	32X32 / 25X25	300	10,12	250	OPC-5030
50	32X32 / 25X25	400	12,16	250	OPC-5040
70	40X40 / 25X25	300	10,12	300	OPC-7030
70	40X40 / 25X25	400	12,16	300	OPC-7040
100	50X50	300	10,12	373	OPC-100.3
100	50X50	400	12,16	373	OPC-100.4
120	50X50	300	10,12	420	OPC-120.3
120	50X50	400	12,16	420	OPC-120.4
150	50X50	300	10,12	480	OPC-150.3
150	50X50	400	12,16	480	OPC-150.4
200	50X50	300	10,12	610	OPC-200.3
200	50X50	400	12,16	610	OPC-200.4
250	50X50	300	10,12	670	OPC-250.3
250	50X50	400	12,16	670	OPC-250.4

* Current rating measured at 35°C room temperature, Since several influencing factors generally apply, the value specified for current rating must be considered as non-binding guideline values.
