Flange Earthing Jumpers

Flange Earthing Jumpers are manufactured using high-quality copper wires. Depending on customer requirements, the copper wire braid can be produced in either a round or flat form. The area, diameter, width, and thickness are fully customizable.

To ensure precise fitting, copper terminals are produced to the required thickness and hole size based on customer specifications. These terminals are tin-plated and securely crimped to the braid after it has been cut to the desired length.

Earth Continuity Strap - Bare

Length	Stud	Item
Center	Hole	Code
mm	mm	Sr. No.
125	12	SBS-05-12
125	14	SBS-05-14
150	16	SBS-06-16
150	18	SBS-06-18
150	20	SBS-06-20
150	22	SBS-06-22
200	24	SBS-08-24
200	26	SBS-08-26
250	28	SBS-10-28
300	28	SBS-12-28
300	30	SBS-12-30
300	32	SBS-12-32
300	34	SBS-12-34
300	36	SBS-12-36
300	38	SBS-12-38
300	42	SBS-12-42
300	44	SBS-12-44
300	51	SBS-12-51
300	54	SBS-12-54

Earth Continuity Strap - Tin Plated

Length	Stud	Item
Center	Hole	Code
mm	mm	Sr. No.
125	12	STS-05-12
125	14	STS-05-14
150	16	STS-06-16
150	18	STS-06-18
150	20	STS-06-20
150	22	STS-06-22
200	24	STS-08-24
200	26	STS-08-26
250	28	STS-10-28
300	28	STS-12-28
300	30	STS-12-30
300	32	STS-12-32
300	34	STS-12-34
300	36	STS-12-36
300	38	STS-12-38
300	42	STS-12-42
300	44	STS-12-44
300	51	STS-12-51
300	54	STS-12-54

Earth Continuity Strap - Insulated

Length	Stud	Item
Center	Hole	Code
mm	mm	Sr. No.
125	12	SIS-05-12
125	14	SIS-05-14
150	16	SIS-06-16
150	18	SIS-06-18
150	20	SIS-06-20
150	22	SIS-06-22
200	24	SIS-08-24
200	26	SIS-08-26
250	28	SIS-10-28
300	28	SIS-12-28
300	30	SIS-12-30
300	32	SIS-12-32
300	34	SIS-12-34

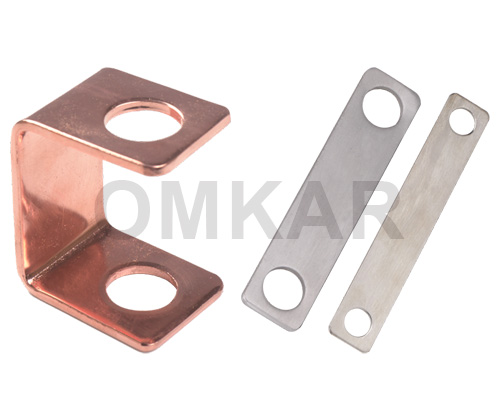

Strip Type Earthing Jumpers

Standard Flange Class	#150 to #900
Standard Flange Size	½ Inch to 40 Inch
Standard Length	100 mm to 900 mm
Standard Hole Size	4 mm to 53 mm
Strip MOC	Copper, Aluminium, SS
Strip Width	10 mm to 75 mm
Strip Thickness	0.5 mm to 3 mm
Strip Design	Flat, C Type
Standard Finish	Bare , Tin
